20.525
- Article number:
- 20525-835
- Weight:
- 20.1kg
- Delivery time:
- From stock

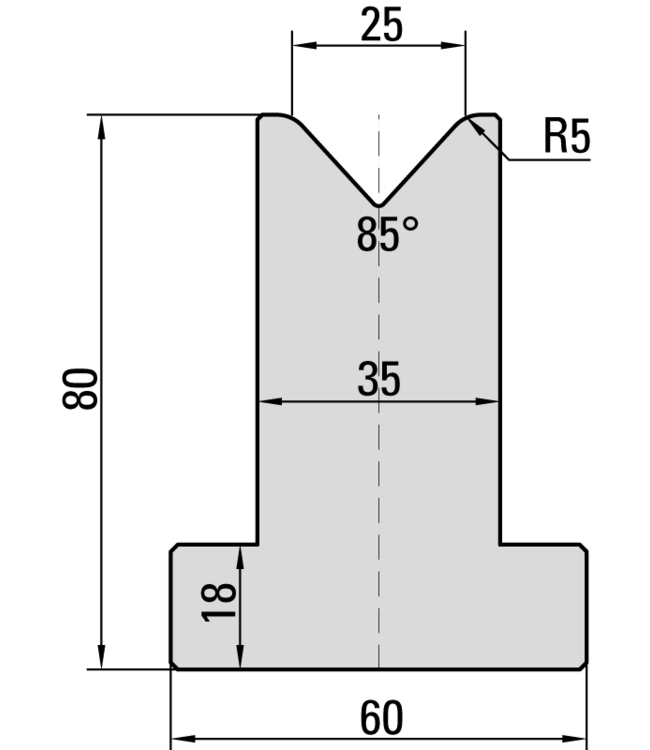

UKB-System Amada - 85° T-dies H = 80 mm Read more..
From stock
-
Quality
use of the optimum materials -
Consultation
competent and qualified advice -
Accessibility
reliable clearing and delivery -
Know-how
more than 30 years of experience
Information
20.525
|
|
| Tooling system | UKB-System Amada |
| Angle | 85° |
| Die opening | V = 25 mm |
| Intake radius | R = 5,0 mm |
| Height | 80 mm |
| Load | 1000 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |
88° T-die 20.309 on request
Tool lengths
| DIES |
|
835 mm |
 |
|
415 mm |
 |
|
800 mm sectionalized
|
 |
9 Segments
