Information

  16.205

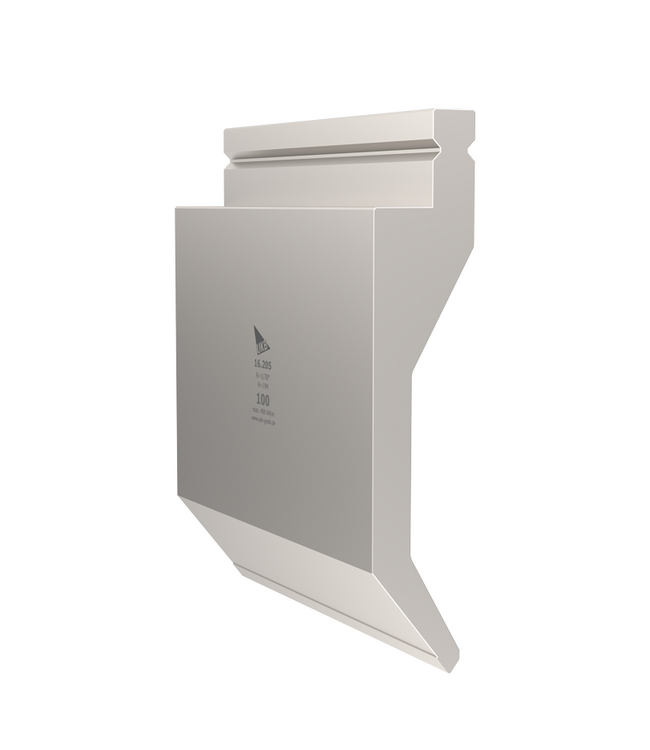

Tooling system UKB-System LVD type I/Trumpf/Wila
Angle 78°
Radius R 1,0 mm
Height 194 mm
Load 400 kN/m max.
Material 42 CrMo4





UKB-INFO

Punches/top tools UKB-System Trumpf and UKB-System Wila type I
can also be used in a clamping UKB-System LVD type I!




Tool lengths



PUNCHES/TOP TOOLS WITH SIMPLE CLAMP

< 12,5 kg



PUNCHES/TOP TOOLS WITH SAFETY PINS

> 12,5 kg



250 mm

510 mm












550 mm sectionalized

10 Segments, with horn extension left and right

Sectionalized punches/top tools are delivered
as a complete set
