Home / 16.203
€534,00
Add to cart

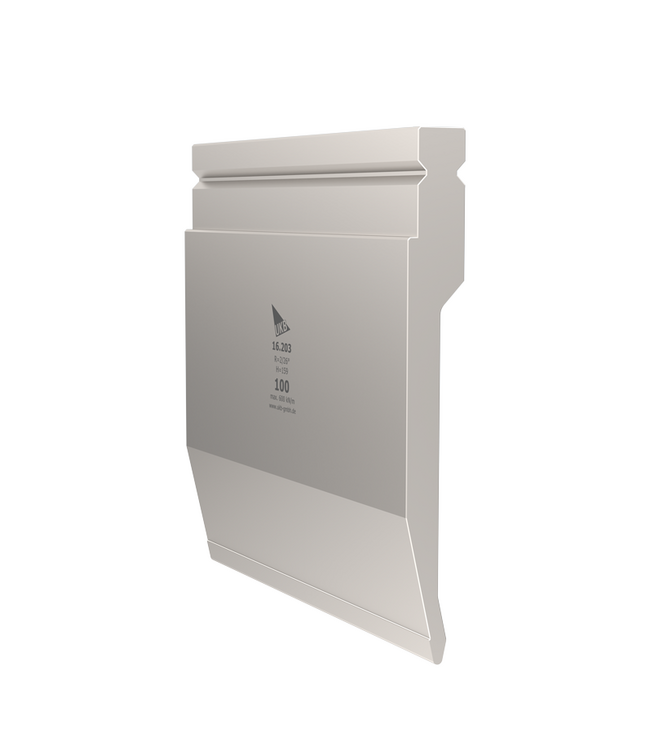

16.203

16.203
16.203
€534,00
* Excl. tax Excl. Shipping costs
Article number:
16203-510
Weight:
11.4kg
Delivery time:
From stock

UKB-System LVD type I - Punches/top-tools H = 159 mm Read more..

Video
Download DXF
From stock

  • Quality

    use of the optimum materials

  • Consultation

    competent and qualified advice

  • Accessibility

    reliable clearing and delivery

  • Know-how

    more than 30 years of experience

Information

  16.203


Tooling system UKB-System LVD type I/Trumpf/Wila
Angle 26°
Radius R 2,0 mm
Height 159 mm
Load 600 kN/m max.
Material 42 CrMo4



UKB-INFO

Punches/top tools UKB-System Trumpf and UKB-System Wila type I
can also be used in a clamping UKB-System LVD type I!




Tool lengths



PUNCHES/TOP TOOLS WITH SIMPLE CLAMP

< 12,5 kg



510 mm

250 mm

250 mm
550 mm sectionalized

10 Segments, with horn extension left and right

Sectionalized punches/top tools are delivered
as a complete set
