11.916
- Article number:
- 11916-835
- Weight:
- 25.3kg
- Delivery time:
- From stock
UKB-System Amada - 30° Punches/top-tools Read more..
From stock
-
Quality
use of the optimum materials -
Consultation
competent and qualified advice -
Accessibility
reliable clearing and delivery -
Know-how
more than 30 years of experience
Information
11.916
|
|
| Tooling system | UKB-System Amada |
| Angle | 30° |
| Radius | R 20 mm |
| Height | 91 mm |
| Load | 1000 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |

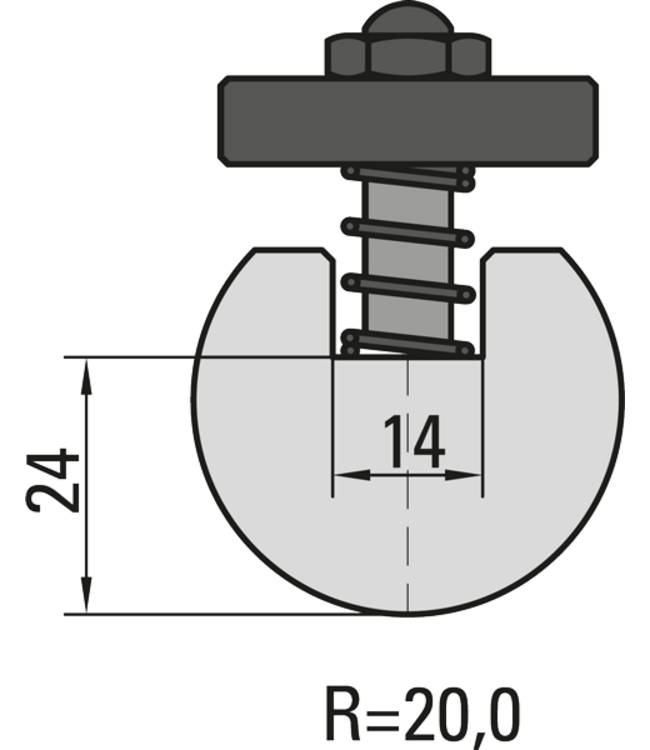

Compatible to radius-tool holder 10.115 and radius-tool 10.316/11.316
2000 kN/m if the tool clamping has the corresponding load
Tool lengths
Punches/top-tools
835 mm
415 mm
800 mm sectionalized
10 Segments with horn extension left and right Sectionalized punches/top-tools are delivered as a complete set
