Home / 11.730
€508,00
Add to cart

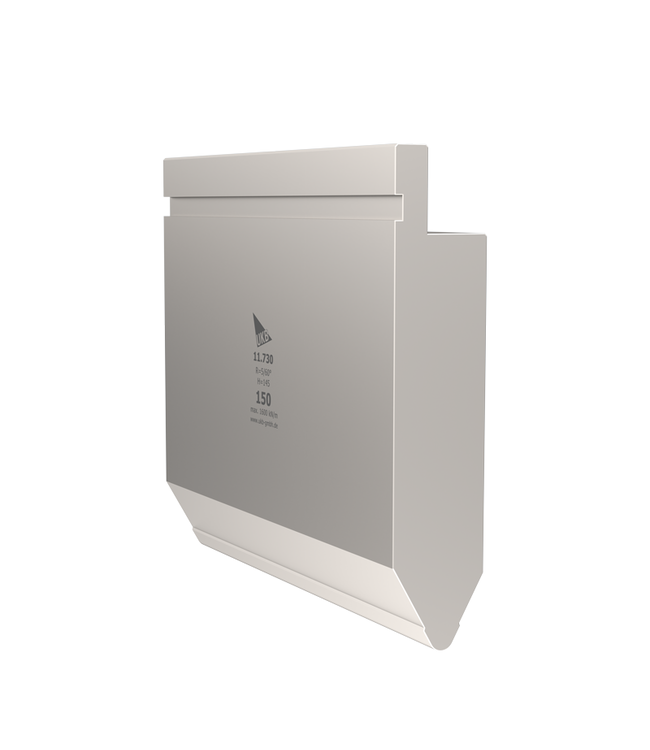

11.730

11.730
11.730
€508,00
* Excl. tax Excl. Shipping costs
Article number:
11730-835
Weight:
34.5kg
Delivery time:
From stock

UKB-System Amada - 60° Punches/top-tools Read more..

Video
Download DXF
From stock

  • Quality

    use of the optimum materials

  • Consultation

    competent and qualified advice

  • Accessibility

    reliable clearing and delivery

  • Know-how

    more than 30 years of experience

Information

 11.730


Tooling system UKB-System Amada
Angle 60°
Radius R 5,0 mm
Height 145,0 mm
Load 1600 kN/m max.
Material 42 CrMo4



Tool lengths



Punches/top-tools

835 mm

Ondergereedschappen lengte 835 mm


415 mm

Ondergereedschappen lengte 415 mm


800 mm sectionalized

10 Segments with horn extension left and right

 Sectionalized punches/top-tools are delivered as a complete set

Punch/top tools length 800 mm sectionalized

Specifications

Product safety
Manufacturer & Responsible Person: UKB - Uwe Krumm GmbH . Struthwiese 1 . 57299 Burbach, E-Mail: [email protected]
